Description

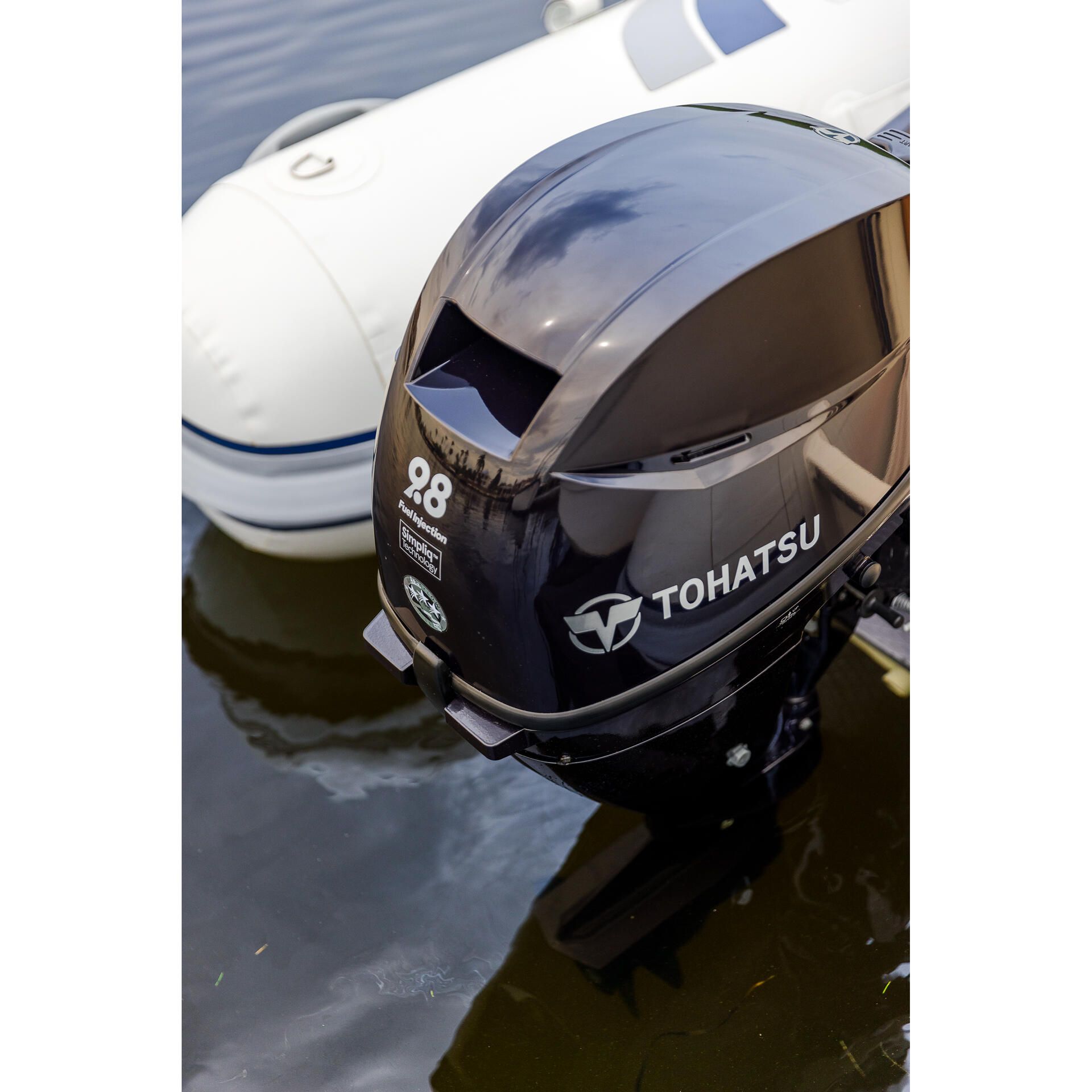

The new generation of MFS9C model lineup is engineered to be EFI (Electronic Fuel Injection) for the first time in 200 cc class. The battery-less EFI model is the lightest 2-cylinder 8 HP on the market, with upgraded features from its predecessor.
Features:
- Battery-less EFI System:
- The EFI system will provide consistent starting, stability at idle and fuel efficiency
- Eliminate the hassles experienced with carbureted models, such as clogging and overhaul of carburetor because of ethanol fuel related issues
- Water Cooled Fuel Pump: Water cooled fuel pump is now a standard feature on MFS8C to offer consistent starting, stable idling and optimal running

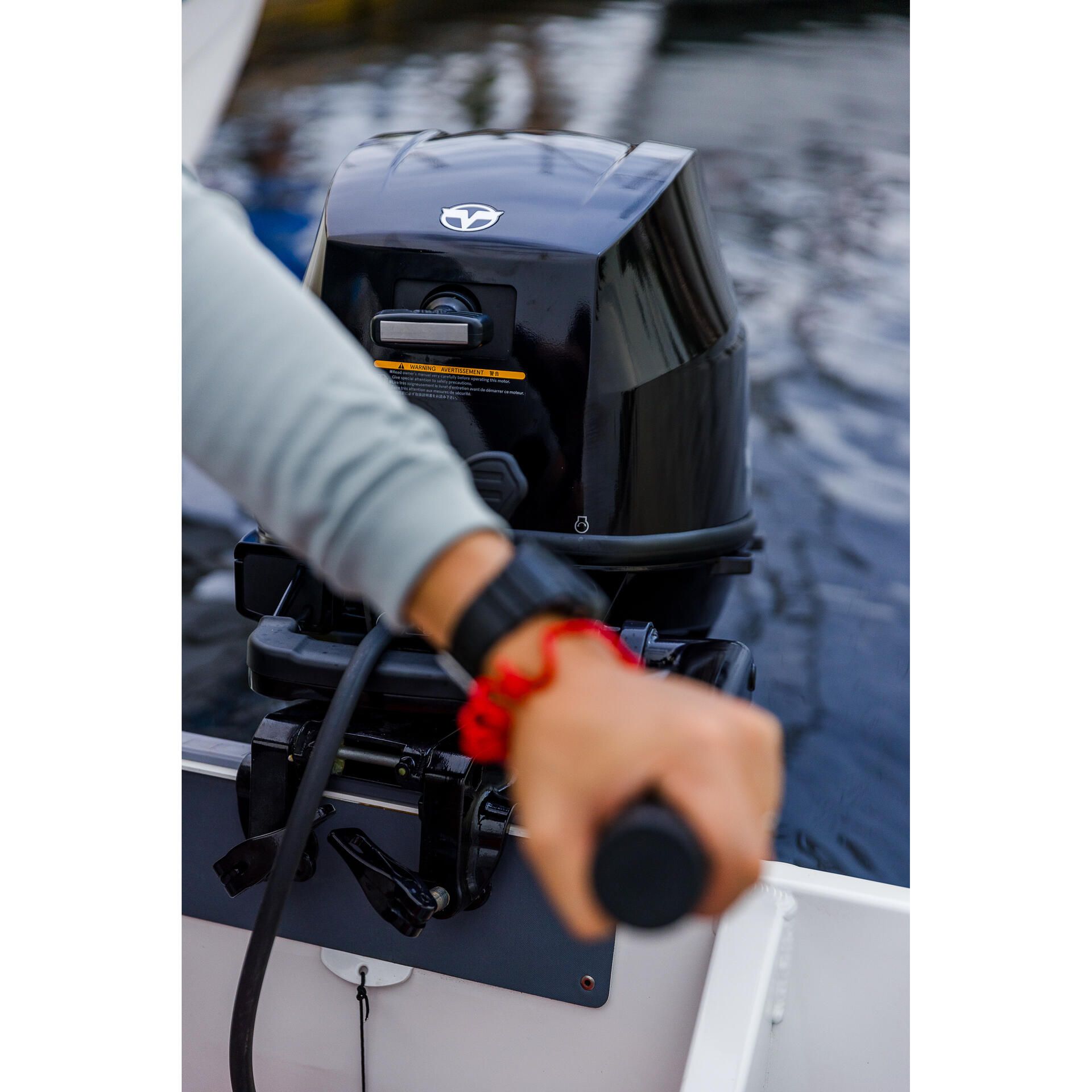

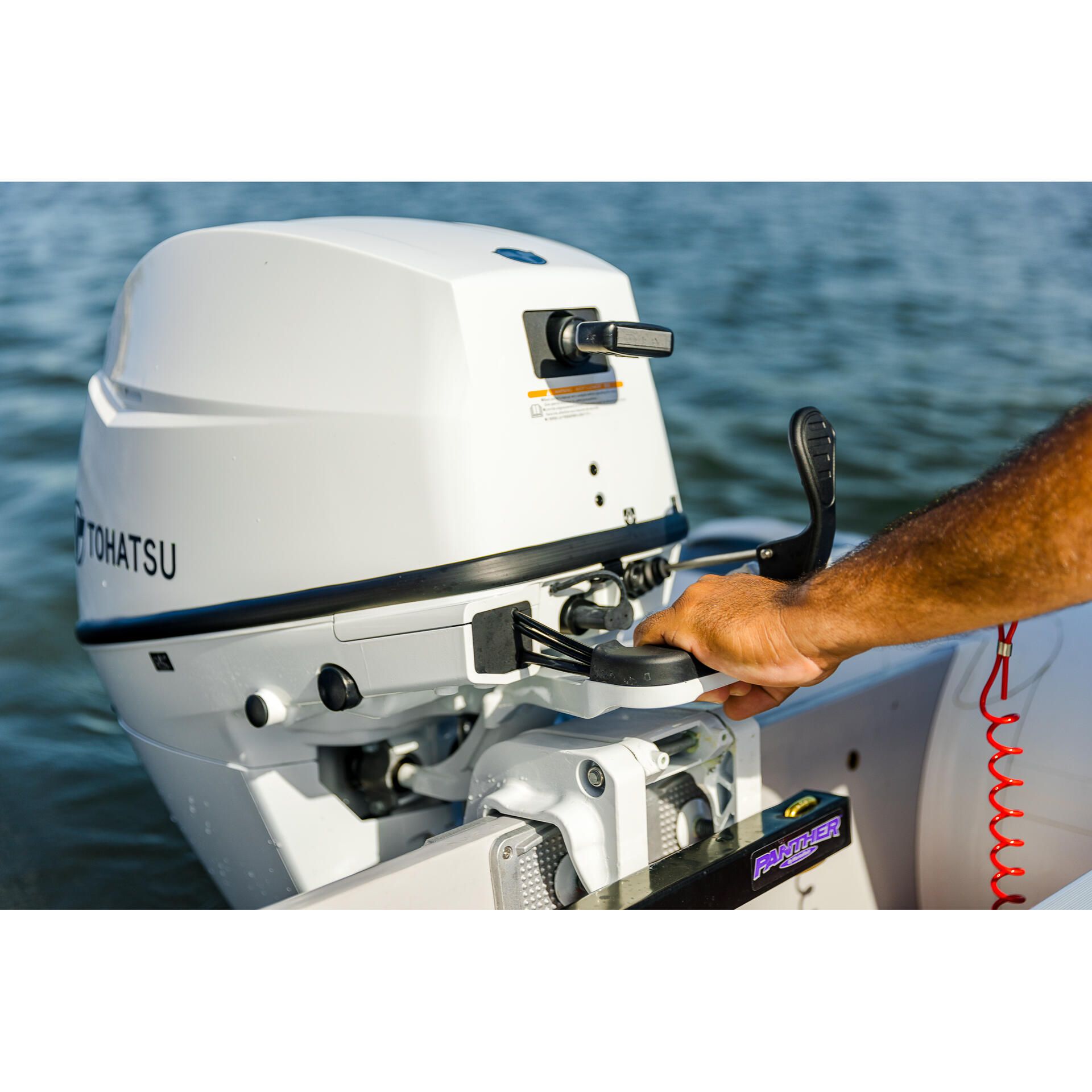

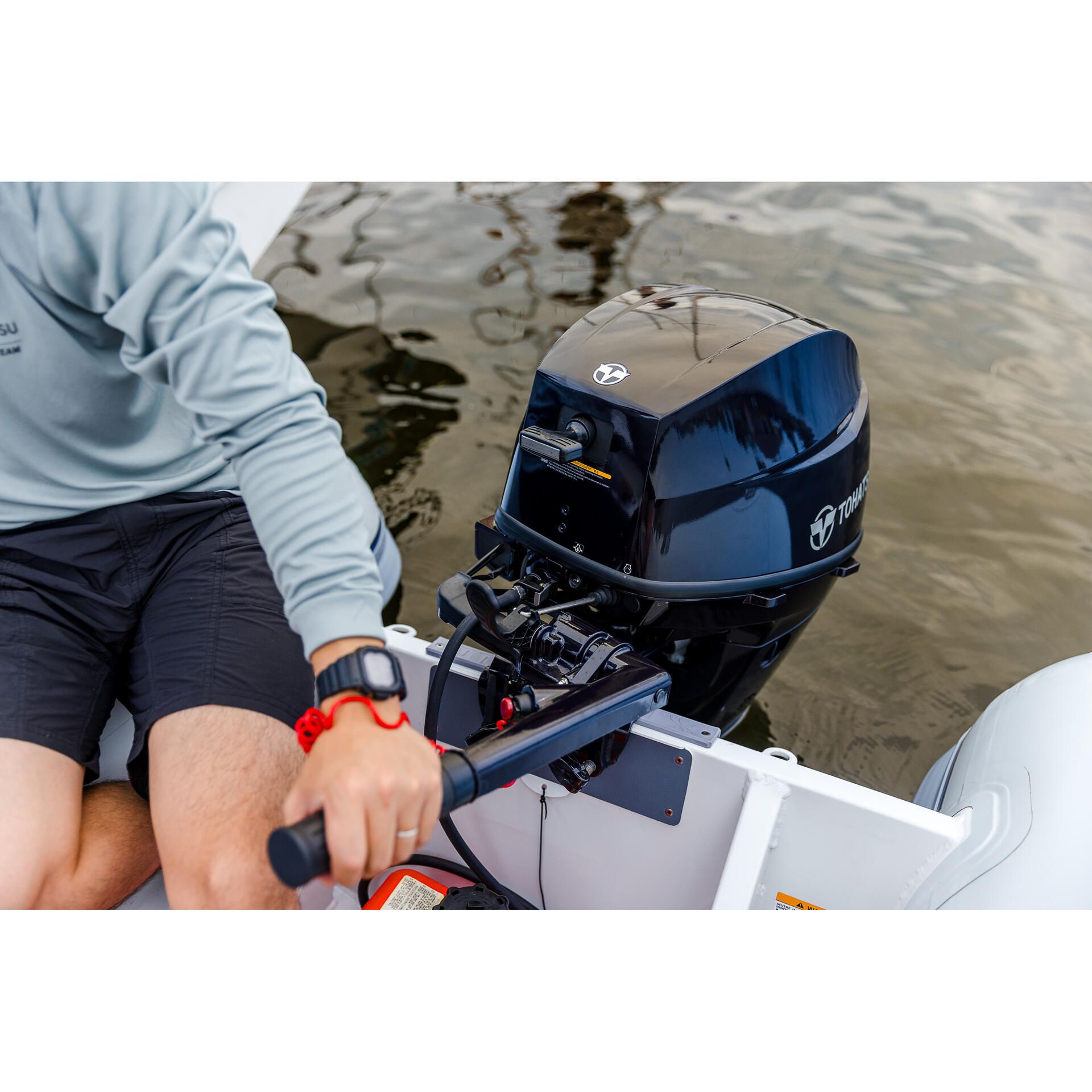

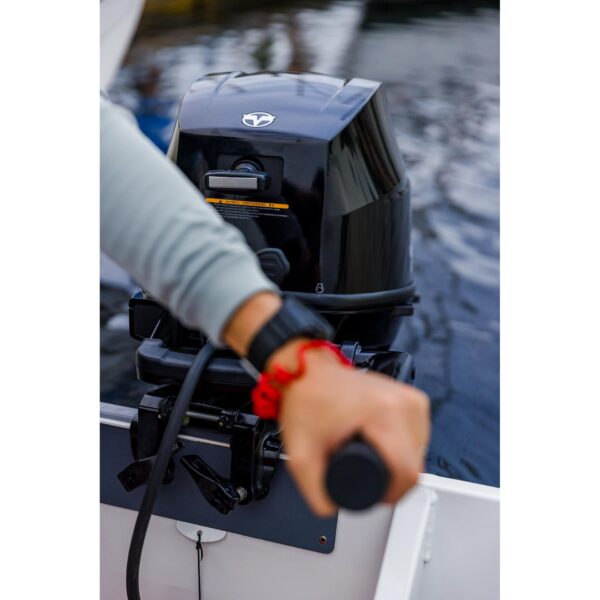

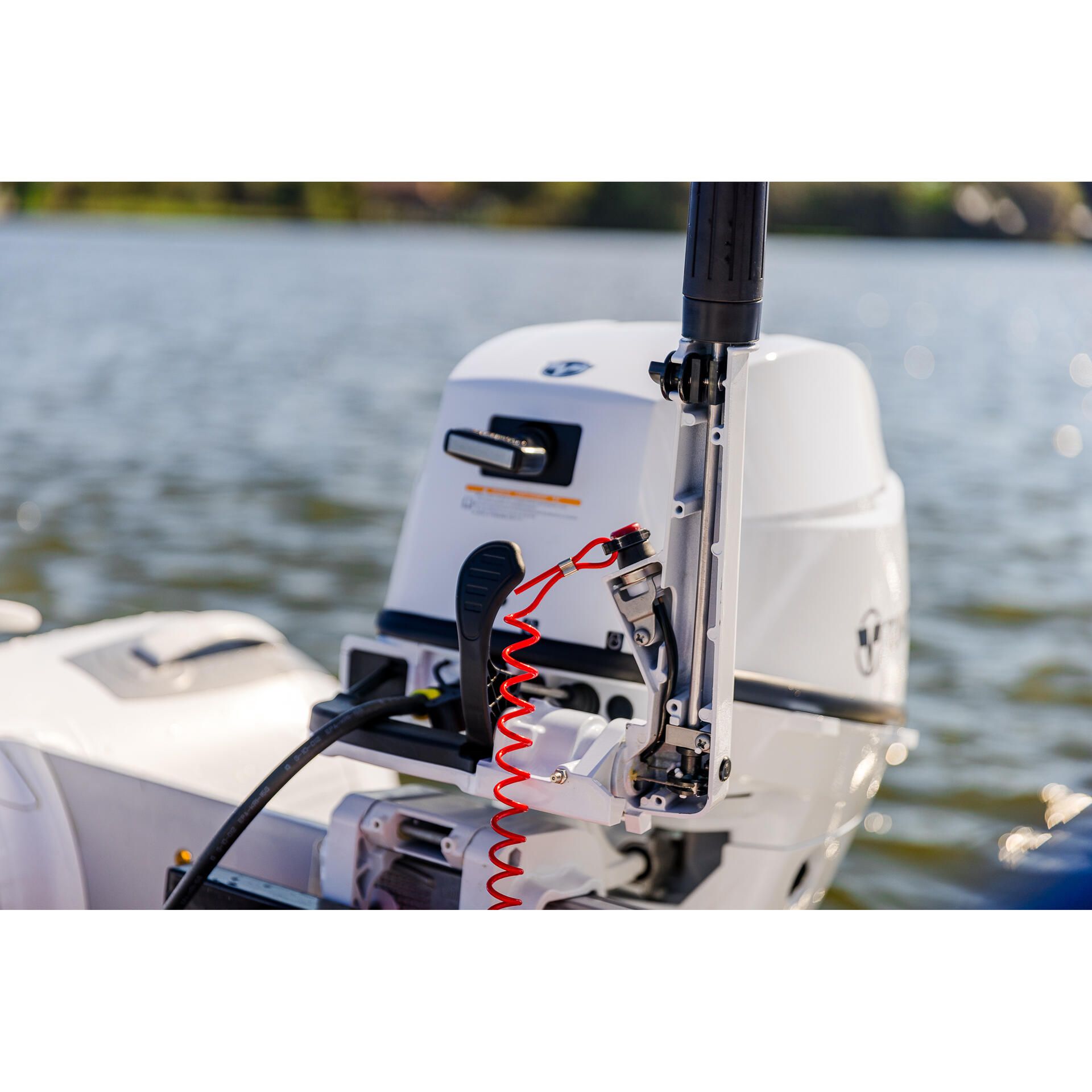

- Standard Tiller Handle:Ergonomically designed tiller handle includes forward-neutral-reverse front shift lever, stop switch and throttle friction adjustment
- Newly Designed Carrying Handle for Tiller Model: In addition to an overall cleaner look by routing shift & throttle cables and wirings through the handle, the new carrying handle features a 40% increase in surface area and smooth shape to reduce the pressure when carrying
- Location of Fuel Connectors: Tiller models: Located on starboard side of lower cowling
- Easy-to-Use Flushing Port:
- Flushing port has been relocated to the mid-section for easier access
- Freshwater flushing is now easier than ever as no special tools are required
- Improved Crankcase Ventilation System: The returning port of the engine crankcase vent has been positioned where the vacuum pressure draws the blow-by vapors more efficiently
- Functional Cowling Design:Rubber grip has been installed at the tilt handle for easier manual tilting and transporting
- Improved Center of Gravity:The center of gravity has slightly shifted toward the front of the outboard reducing the manual tilt effort by 19%

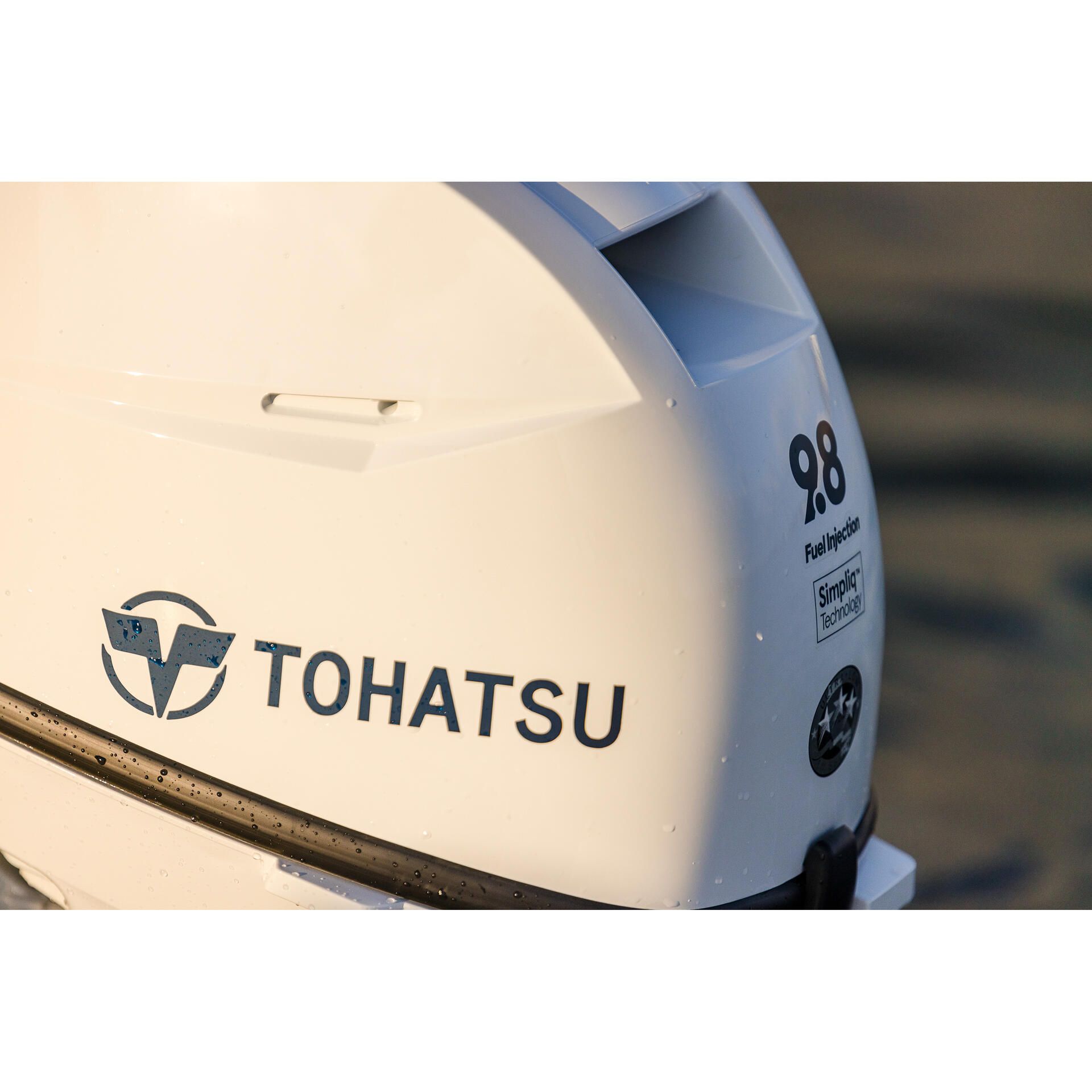

- Sleek Cowling Design:Based on Tohatsu’s design philosophy, the look of the cowling has been crafted to align with MFS2.5-MFS30
- Easy Daily Maintenance Fuel Filter: Clear fuel filter with floating indicator ring provides detection of water in the fuel system. Tool-free quick drain valve allows for easy serviceability
- Lightest 2-Cylinder EFI available on the market
- Reduced vibration for smooth and stable running at all speeds
- Greatly reduced induction noise for a quieter ride
- Trim tab reduces steering effort, functioning also as the sacrificial anode that protects the engine from electrolysis
- Ultra Low emission, EPA and CARB 3-Star rating approved
- Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
- Manual choke on tiller models
- Recoil starter with larger reel making manual starting fast and easy
- Through-the-prop exhaust for a quieter ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing liner for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- Low oil pressure indicator
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Start-in-gear protection for safer engine starting
- Over-rev. limiter
Specifications:
- Engine Type: 4-Stroke 2-Cylinder SOHC-4V
- Maximum Power Output: 9.8 HP (7.2 kW)
- Engine Operating Range: 5300 – 6200 RPM
- Number of Cylinders: 2
- Displacement: 12.2 cu.in. (200cc)
- Bore x Stroke: 2.15″ x 1.75″ (55 x 44 mm)
- Dry Weight (lightest model):
- 15″ Shaft: 85 lbs (385 kg)
- 20″ Shaft: 87 lbs (39.5 kg)
- Shaft Length: 15″, 20″, or 25″
- Control Type: Tiller
- Gear Ratio: 2.08 (27:13)
- Alternator (electric start models only): 12V/8A at 5750 rpm
- Standard 3-Blade Aluminum Propeller: 8 1/2″ x 8″
- Fuel Tank: 12 L (3.1 gal) Separate Fuel Tank with fuel line included
- Color: Aqua Marine Blue or Beluga White
- Factory Warranty: 5 years. Warranty begins on date of purchase.
